FE4P25N

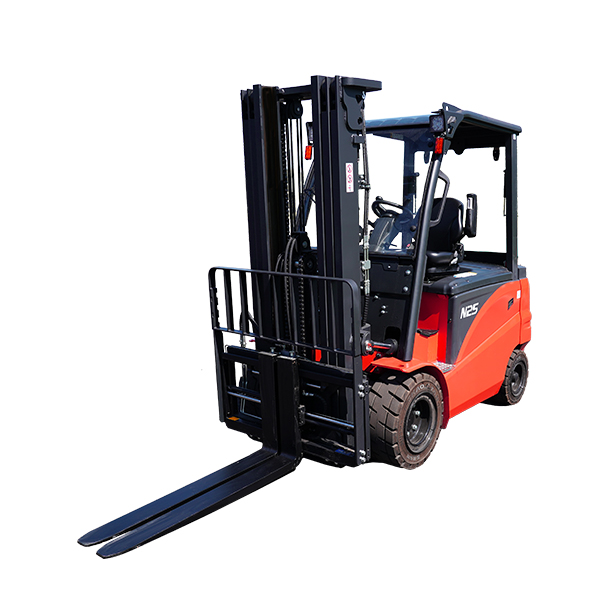

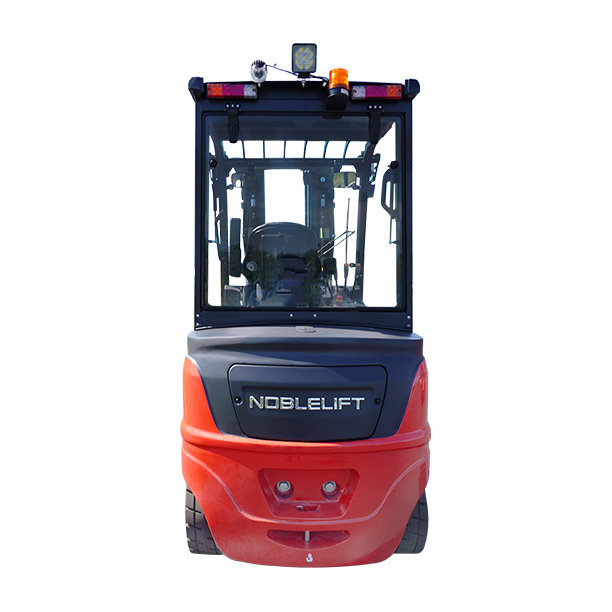

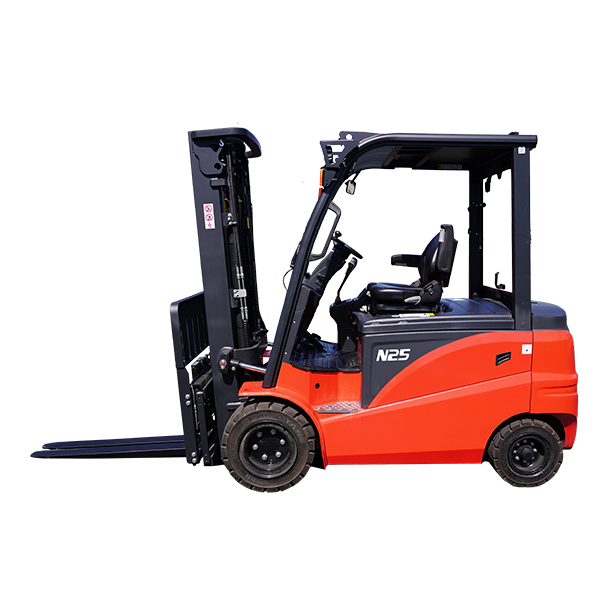

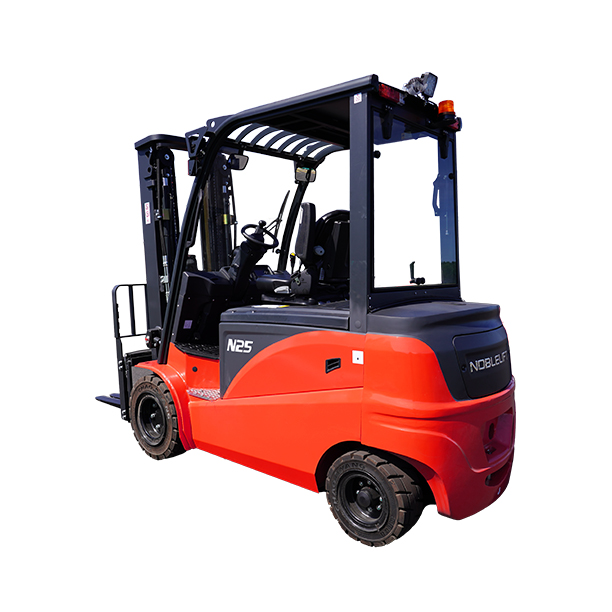

Four-wheels heavy duty electric forklift 2,5 T ACDG 500 mm

Renowned for its compact, elegant design, coupled with excellent visibility, the Noblelift FE4P25N electric forklift combines efficiency and low energy consumption. Stability, easy maintenance, reliability, safety and operating comfort are also the strengths of this 2.5-ton forklift.

more information
Designation Stock / EXW price per unit excl. VAT
FE4P25N
Four-wheels heavy duty electric forklift 2,5 T

The configurations available for this model will appear below. If no configuration is available in stock, you can use the configurator and send us your request by email.
DESCRIPTION
TECHNICAL CHARACTERISTICS

  • FE4P25N electric forklift load capacity: 2.5 tonnes
  • Drive: electric
  • Battery: BS (Lithium optional)
  • Wheels: 4 pneumatic
  • Weight (with battery): 4260 kg
  • Lifting height: 2000 mm to 6500 mm (depending on mast). For mast lift heights, wheel specifications and overall dimensions, please refer to the technical data tables in the documentation available for download.
  • NOBLELIFT N-Series electric forklifts are renowned for their compact, elegant design, coupled with excellent visibility. They combine high efficiency with low energy consumption. Stability, easy maintenance, reliability, safety and operating comfort are also the strengths of these electric forklifts. Ergonomic details are meticulous. They can lift loads from 1.6 to 3.5 tons, depending on the model.
  • The reliability and safety of electric forklifts is ensured by the fact that all components come from internationally recognized brands: motor controllers, contactors, power switch, emergency switch, display, gas pedals and other key electrical components adopt renowned international brands. The FE4P25N is equipped with an integrated high-frequency MOSFET controller and CAN-bus technology.
  • This integrated MOSFET controller ensures smooth, precise driving and lifting, as well as excellent acceleration. Matching motor and controller performance offers safety and reliability, such as regenerative braking and reverse connection, as well as an anti-slip ramp.
  • All European standards are met: operating sequence protection, electronic self-protection function, emergency stop switch.
  • The FE4P25N truck is designed to keep noise levels low. Damping devices have been added to the motor and batteries. Vibrations are reduced thanks to an optimized body frame structure. A silent pump combined with a load-sensing steering mechanism also makes the FE4P25N electric forklift extremely quiet.
  • The lowering speed automatically slows down before the forks are lowered to the minimum height. The lowering speed automatically slows down before the forks are lowered to the minimum height, thus considerably reducing impact noise.
  • Also designed to reduce noise and ensure working comfort for forklift operators, the rear axle uses a flexible shock-absorbing system that effectively filters out obstacles on the ground.
  • Various speed modes can be selected according to the forklift's application and operating environment.
  • The forklift's service life is considerably extended thanks to a high-efficiency AC power supply system, with speed and temperature sensors. This design also provides complete protection for the forklift.
  • Optional tires specifically designed for electric forklifts save over 10% energy when driving. (Optional)
  • The design of the FE4P25N electric forklift enables easy maintenance and high stability.
  • The top seat cover is fully openable. For multi-shift operations, the battery can be easily replaced from the side by a single hand pallet truck or electric pallet truck, easily and safely, without the need for a crane, forklift or other special tools required for battery replacement.
  • The controller cover is fully sealed. It is located at the rear, level with the counterweight, for high protection of the controller and other electrical components against dust and water. The FE4P25N is equipped with a large LED display showing error codes and warning of misuse. The FE4P25N electric forklift follows the design of market-leading brands for the drive motor. It is arranged in parallel, and the battery is located at the bottom of the forklift chassis. This design gives the truck great stability and a low center of gravity.

Options

  • Rear grab handle with integrated horn function
  • Tires specifically designed for electric forklifts, saving over 10% energy when driving
  • Specific configuration for cold stores
  • Lithium battery available
