FE4P45Q

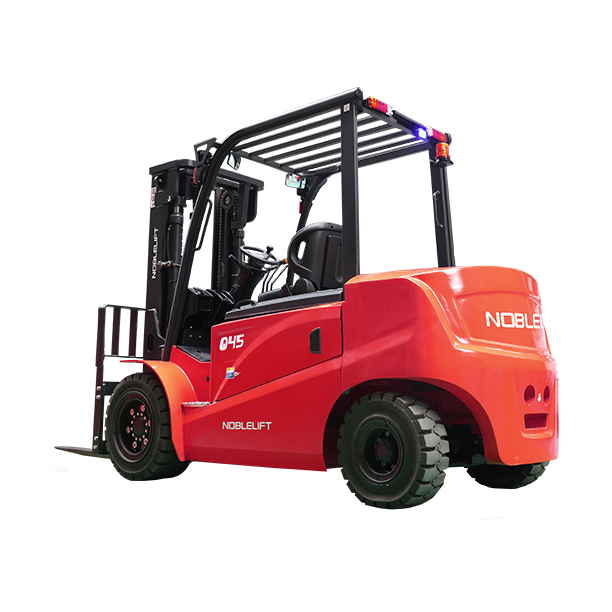

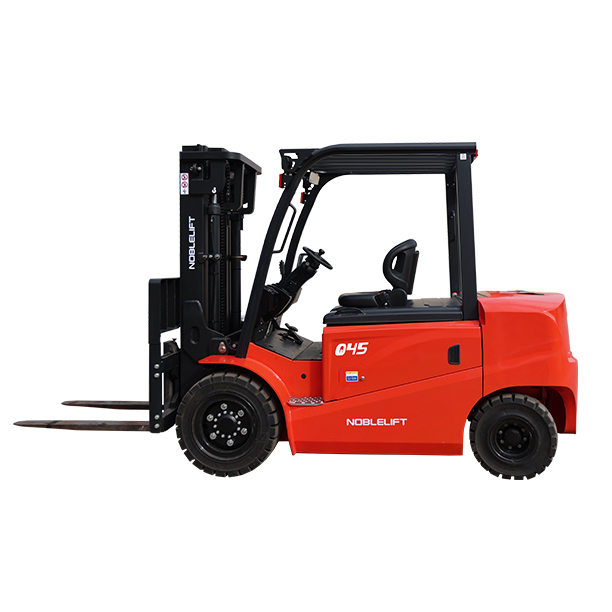

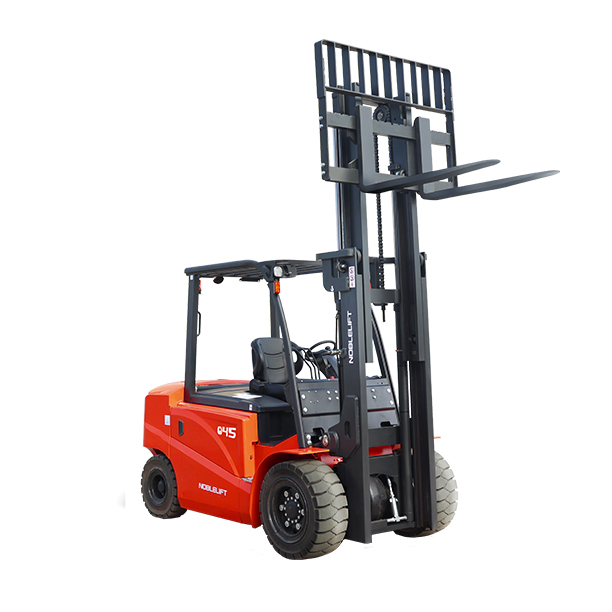

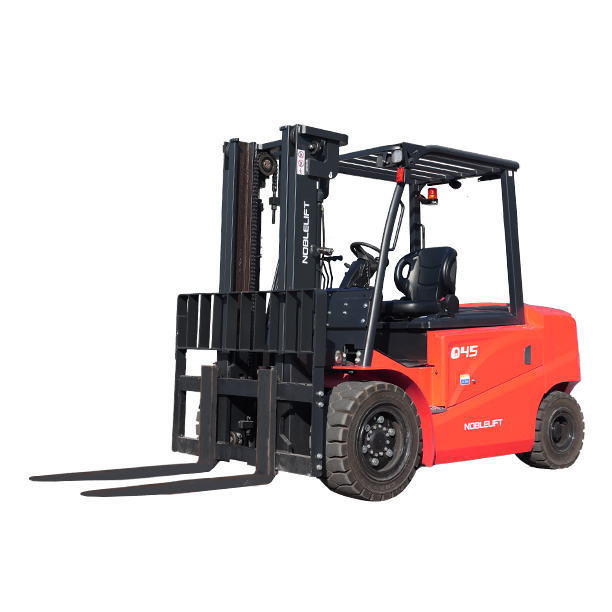

Four-wheels electric forklift 4,5 T - load centre distance 500 mm - Q Series

FE4P45Q

Four-wheels electric forklift 4,5 T - load centre distance 500 mm - Q Series

Compared with the N Series, the Q Series FE4P45Q 4-wheel electric forklift is much more compact, and therefore more suitable for working in confined areas. Q-series electric forklifts have also been developed with moderate applications in mind, with great comfort and efficiency. The FE4P45Q electric forklift moves and lifts loads of up to 4.5 tonnes.

more information

	Designation	Stock / EXW price per unit excl. VAT
	FE4P45Q Four-wheels electric forklift 4,5 T - Q Series The configurations available for this model will appear below. If no configuration is available in stock, you can use the configurator and send us your request by email.

DESCRIPTION

TECHNICAL CHARACTERISTICS

FE4P45Q electric forklift Load capacity: 4,5T
Drive: electric
Battery: Lithium-Iron
Wheels: 4 pneumatics
Weight (including battery) :
Mast light height: from 2000 mm to 7580 mm (consult mast table for capacity and mast specifications)
For mast lift heights, wheels specifications and overall dimensions, please consult the technical attribute tables.
Easy operation and excellent view: the truck adopts long tiller ratchet parking brake design for easy ope ration. Ratchet-type parking brake allows the truck stay at the slope of 15% without safety concern. Combination switch as auto motive, the seat can be adjusted back and forth so that the operator can choose the ideal driving position. U design of steering wheel, front-located multi-way valve operating device makes the operation effortless and cornfortable.
Excellent design and performances: Drive system uses a horizontal fan-shaped drive axle arranged in parallel with a large transmission ratio. The battery is located at the bottom of ch assis, the truck has good stability. Drive motor uses AC maintenance-free motor. Long wheelbase (1700mm)design, better stability. 1 ntegrally forged Integrated steering axle, with shock mitigation system with excellent driving comfort and prolongs the service life. Lifting Motor located in high position so the truck can work in applications where there are water on the ground. Ergonomically designed LED display with large screen and great visibility for easy contrai and operation with ail around truck status information. Big diameter tyres with better performance for outdoor applications, and comfortable driving experience, optional to have solid tyres.
Simplified structure tor easy maintenance: Simplified structure without compromising on the strength, makes the truck looks stronger. Controller assembly located on higher position for easy ventilation and maintenance.
Standard lithium power, high elficiency: Fast charging with battery fully charged in 2-3 hours (Standard configuration : REMA/Anderson plugin). The intelligent high frequency charger with automobile charging technology has a working efficiency of more than 95%, which is much higher than the 80% working efficiency of traditional low frequency charger.
High cost performance : the Lithium battery is more environment-friendly. There is no acid evaporation, odor and pollution during the charging process. The operation of Li-ion powered trucks are relatively quiet and zero carbon dioxide emissions. Therefore, Li-ion powered trucks is an ideal plan for the industry that has environment concern, such as food processing, chemical and pharmaceutical industry.
Each lithium truck requires only one battery attributing to its fast charging feature no matter how many work shifts. The life time of lithium battery is three times that of lead acid battery. The maintenance-free feature of lithium battery gives much higher cost performance than lead-acid battery.
FAST CHARGING : Charge your battery whenever and wherever you need. The unique fast-charging feature of lithium battery makes it an ideal choice for multi-shift work. Comparing with traditional lead-acid battery, it is no longer needed to change batteries among shifts, or prepare stand-by battery and special charging area for Li-ion powered trucks. Fast charging allows charging at interval from operations which extends greatly the working time of truck. ln addition, lithium battery has no memory of charging cycles which will not affect the life time at all. The lithium charger is no longer required to be placed in a specified area due to the environment-friendly feature.
LITHIUM SAFETY : Efficient, Maintenance-free. Lithium battery reduces 35% energy consumption, requires no specified charging area and exempts from cost for battery maintenance. lt saves space, requires no device to be taken out of truck as well as additional ventilation and liquid filling device. The power of the lithium battery system is composed of high-safety high-density lithium iron phosphate battery, intelligent battery management system (BMS), thermal management system, and automotive-grade DC high-voltage control system. The BMS enables the communication network between the power lithium battery and controller, the truck itself, the charger and the remote management platform, real-time detection of the status of the lithium battery, the operating state of the truck and the charging state, so as to maximize the safety and reliability of lithium batteries.

Options

Optional different battery capacities: the standard configuration is 80V200Ah, optional 80V300Ah and 400Ah.
Automotive type intelligent plug-in charging gun with high frequency charging technology. Note: press the "stop" button of the charger before pulling the gun.
