FE4P30GY-80

4-wheel lithium electric forklift truck - permanent magnet and 80 V battery - 3 T

FE4P30GY-80

4-wheel lithium electric forklift truck - permanent magnet and 80 V battery - 3 T

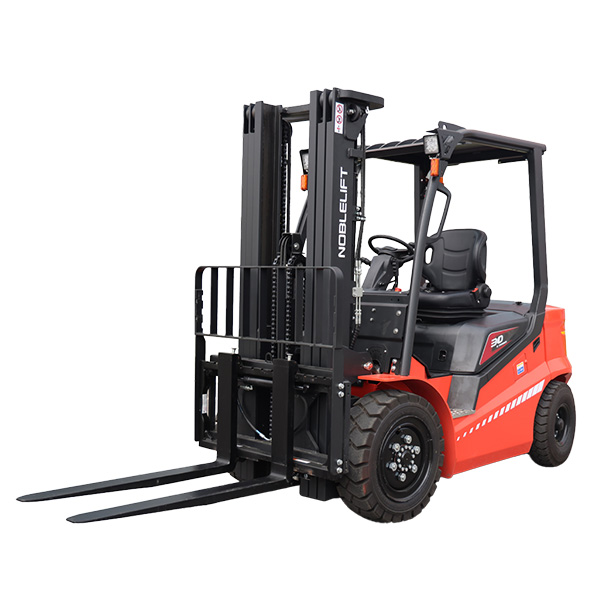

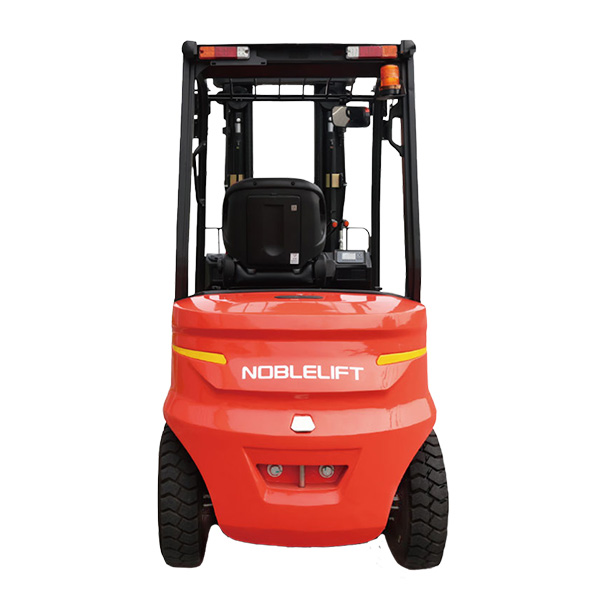

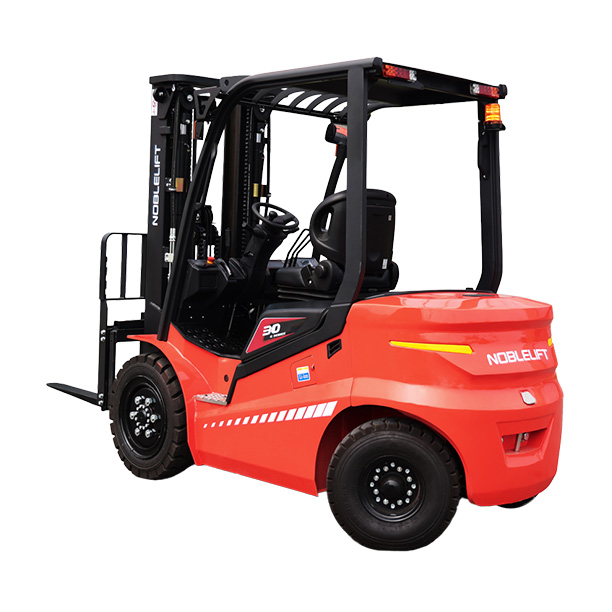

The NOBLELIFT FE4P30GY-80 4-wheel lithium electric forklift, featuring permanent magnet synchronous technology and an 80V battery, is designed for superior performance with a load capacity of 3 tons.

more information

	Designation	Stock / EXW price per unit excl. VAT
	FE4P30GY-80 4-wheel lithium electric forklift truck - permanent magnet and 80 V battery - 3 T The configurations available for this model will appear below. If no configuration is available in stock, you can use the configurator and send us your request by email.

DESCRIPTION

TECHNICAL CHARACTERISTICS

Energy efficiency: The NOBLELIFT FE4P30GY-80 forklift uses a permanent magnet synchronous motor, reducing energy consumption by 15-25% compared with conventional AC motors. This advanced technology optimizes coordination between gearbox, motor and electronic control, ensuring more efficient use of energy. This translates into longer battery life and lower operating costs, which is essential for intensive handling operations. Sturdiness and design: Inspired by the robust exterior design of the Q series, the FE4P30GY-80 features a compact, elegant structure. Its sturdy design ensures enhanced durability, essential for demanding working environments. High-quality components, such as drive and steer axles, as well as PPS tires, ensure maximum resistance to tough working conditions. Fast charging: Integrated lithium-ion technology enables the battery to be fully charged in just 2 hours. This fast-charging capability minimizes downtime and maximizes the truck's availability for continuous operations. With an 80V battery and a rated capacity of up to 554 Ah, the FE4P30GY-80 is ideal for intensive work cycles. Optimum performance: the FE4P30GY-80 forklift offers outstanding performance thanks to its powerful torque motor and high ratio gearbox. With a travel speed of 14 km/h laden and 15 km/h unladen, a lift speed of 0.30 m/s laden and 0.4 m/s unladen, and a gradeability of 20% laden, this forklift is comparable to internal combustion models in terms of speed and lifting capacity.
High demands: Equipped with premium permanent magnet motors, robust drive and steering axles, high-quality tires and durable mast systems, the FE4P30GY-80 meets the most demanding operational requirements. Its 3000 kg load capacity and 500 mm center of gravity ensure optimum stability and safety when handling heavy loads.
Permanent magnet technology: Permanent magnet technology guarantees constant, reliable performance while reducing maintenance requirements. Permanent magnets require no constant current to maintain the magnetic field, increasing energy efficiency and reducing operating costs. This technology also ensures better motor response, improving maneuverability and lifting precision. Technical specifications of the NOBLELIFT FE4P30GY-80 lithium electric forklift truck Identification :
Model: FE4P30GY-80
Transmission: electric
Type of operation: seated
Capacity: 3000 kg
Center of gravity: 500 mm Dimensions: Overall length: 3688 mm
Length to front of forks: 2618 mm
Overall width: 1230 mm
Mast height retracted: 2070 mm
Lift height: 3000 mm
Mast height extended: 4079 mm
Height of protective roof (cab): 2200 mm
Turning radius: 2360 mm Weight :
Running weight with battery: 4070 kg
Front/rear axle load (laden): 6390/680 kg
Front/rear axle load (unladen): 1750/2320 kg Wheels and tires :
Wheel type: PPS
Tyre size front: 28x9-15-14PR
Tyre size rear: 6.50-10-10PR
Number of wheels front/rear: 2x/2 Performance:
Travel speed (laden/unladen): 14/15 km/h
Lifting speed (laden/unladen): 0.30/0.4 m/s
Lowering speed (laden/unladen): <0.6 m/s
Traction (laden/unladen) S2 60 min: 10000/11000 N
Maximum performance on gradients (laden/unladen) S2 5 min: 20/25 %. Motor and battery:
Traction motor power S2 60 min: 15 kW
Lift motor power S3 15%: 22.6 kW
Battery type: Lithium
Battery voltage: 76.8V
Battery nominal capacity: Up to 554 Ah
Battery weight: 695 kg
Charging time: 2 hours Additional features:
Drive control type: AC
Accessory operating pressure: 17.5 Mpa
Accessory oil volume: 36 l/min
Sound pressure level: 74 dB Examples of applications for the FE4P30GY-80 lithium electric forklift truck Manufacturing industry:
Problem: Need reliable equipment for continuous, intensive operations.
Solution: The FE4P30GY-80, with its fast-charging lithium-ion battery and permanent magnet motor, guarantees constant performance and maximum availability. Logistics and warehousing : Problem: Fast, efficient pallet handling.
Solution: Thanks to its optimal driving and lifting speeds, this forklift enables efficient management of handling operations, thus improving productivity.
