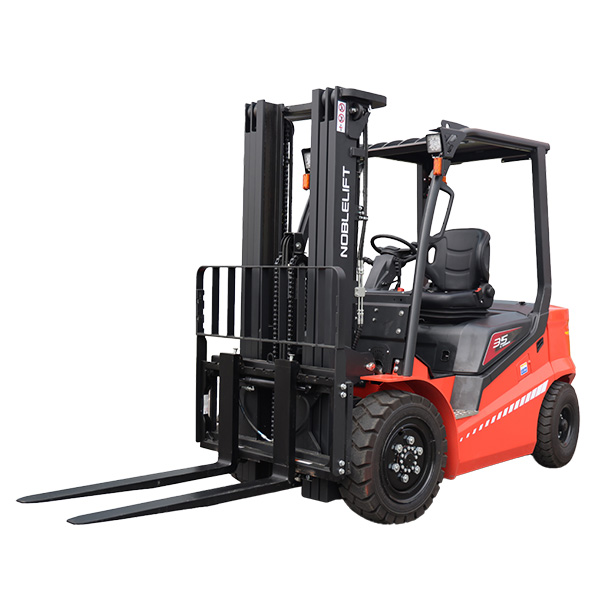

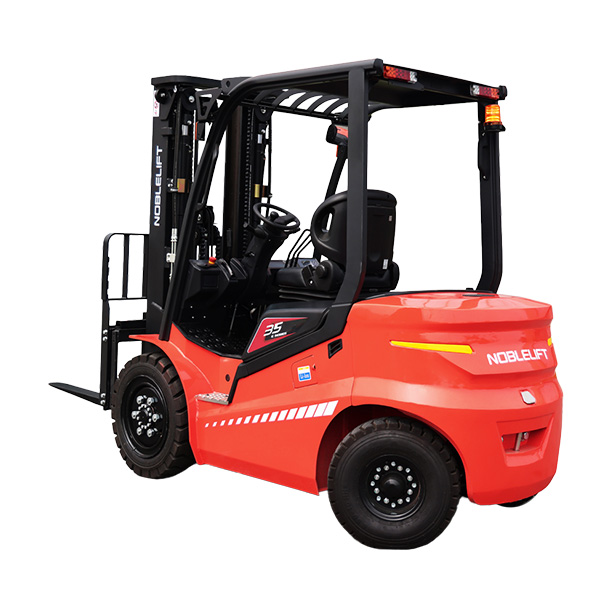

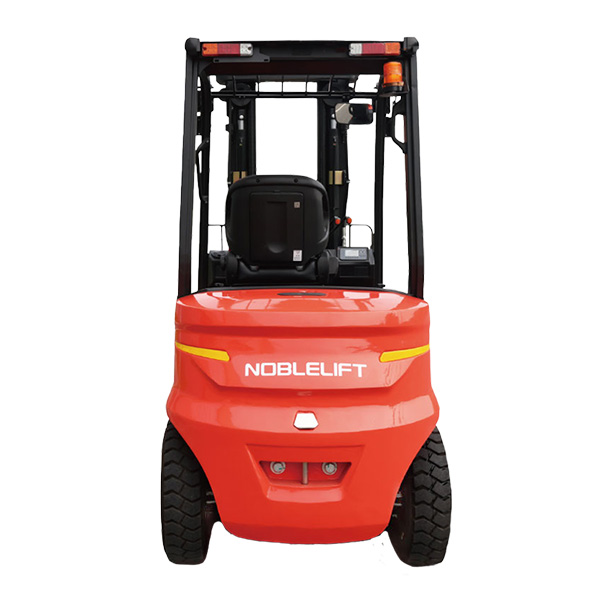

FE4P35GY-80

4-wheel lithium electric forklift - permanent magnet and 80 V battery - 3.5 T

FE4P35GY-80

4-wheel lithium electric forklift - permanent magnet and 80 V battery - 3.5 T

Noblelift's FE4P35GY-80 lithium electric forklift, featuring permanent magnet technology and an 80V battery, offers a load capacity of 3.5 tons. It combines energy efficiency with superior performance.

more information

	Designation	Stock / EXW price per unit excl. VAT
	FE4P35GY-80 4-wheel lithium electric forklift - permanent magnet and 80 V battery - 3.5 T The configurations available for this model will appear below. If no configuration is available in stock, you can use the configurator and send us your request by email.

DESCRIPTION

TECHNICAL CHARACTERISTICS

Permanent magnet technology: The FE4P35GY-80 forklift incorporates a permanent magnet synchronous motor for constant, reliable performance. Thanks to this advanced technology, this lithium forklift guarantees a significant reduction in energy consumption, up to 25% compared with trucks equipped with AC motors. What's more, permanent magnet technology requires no constant current to maintain the magnetic field. As a result, energy efficiency is optimized, while operating costs are reduced. The responsive motor also enhances maneuverability and lifting precision, essential for complex handling tasks.
Optimum performance: with a load capacity of 3.5 tonnes, this 4-wheel forklift offers exceptional versatility for a variety of industrial applications. Its specific technical features, such as a lifting speed of 0.30/0.4 m/s and a travel speed of 14/15 km/h with load/empty, ensure maximum productivity in the workplace. In addition, its high traction of 10000/11000 N, maximum performance on slopes of 20/25% and hydraulic service brake ensure safe and efficient load handling, even in difficult environments.
Fast charging: The integrated lithium-ion battery enables full charging in just 2 hours, minimizing downtime and maximizing operational productivity. With a K5 nominal battery voltage of 76.8/206 V/Ah and a battery weight of 947 kg, this truck offers sufficient autonomy and power to meet the most demanding requirements of industrial applications.
Robust appearance: Inspired by the exterior design of Q-series lithium forklifts, the FE4P35GY-80 features a compact, robust structure combined with an elegant appearance. Its precise dimensions, such as its overall length of 3818 mm, total width of 1230 mm and protective roof (cab) height of 2200 mm, make it an ideal choice for demanding working environments. Technical specifications of the FE4P35GY-80 lithium electric forklift truck Identification :
Manufacturer's type designation: FE4P35GY-80 Transmission: electric
Operation type: seated
Load capacity/rated load: 3500 kg
Center of gravity: 500 mm Load distance from center of drive axle to fork: 483 mm Wheelbase: 1800 mm Weights :
Running weight with battery: 4480 kg Axle load, front/rear: 7140/840 kg Axle load, unladen front/rear: 1960/2520 kg Wheels, chassis :
Wheel type: PPS Front tire size: 28x9-15-14PR Rear tire size: 6.50-10-10PR Number of front/rear wheels (x = drive wheels): 2x/2 Front track width: 1004 mm
Rear track width: 982 mm Basic dimensions :
Carriage tilt front/rear mast/fork: 6/10 °. Retracted mast height: 2185 mm Free lift: 145 mm Base lift height: 3000 mm
Deployed mast height: 4079 mm
Cab canopy height: 2200 mm
Seat height/standing height: 1130 mm
Hitch height: 580 mm Overall length: 3818 mm
Length to fork face: 2748 mm
Total width: 1230 mm Fork dimensions: 50/125/1070 mm Fork carriage width: 1100 mm
Ground clearance, loaded, under mast: 145 mm Ground clearance, center of truck: 150 mm
Aisle width for pallets 1000x1200 crosswise: 4123 mm
Aisle width for 800x1200 pallets lengthwise: 4323 mm
Turning radius: 2440 mm Performance data:
Loaded/unloaded travel speed: 14/15 km/h
Lifting speed with/without load: 0.30/0.4 m/s
Lowering speed, with/without load: <0.6 m/s
Traction, with load/unload S2 60 min: 10000/11000 N
Maximum gradient performance, with load/unload S2 5 min: 20/25%
Service brake: hydraulic Service brake: hydraulic Electric motor :
Traction motor power S2 60 min: 15 kW
Lift motor power at S3 15%: 22.6 kW Standard battery: Lithium
Battery voltage, nominal capacity K5: 76.8/206 (optional 277/412/460/554 V/Ah)
Battery weight: 947 kg Additional information:
Drive control type: AC Accessories operating pressure: 17.5 Mpa
Oil volume for accessories: 36 l/min Sound pressure level to EN 12 053: 74 dB The FE4P35GY-80 forklift truck is ideal for a variety of industrial sectors, including logistics, manufacturing and distribution warehouses. Thanks to its 3.5-ton load capacity and advanced technology, it responds effectively to operators' challenges:
Logistics and warehousing: Operators often experience downtime problems due to battery recharging. The rapid 2-hour charging of the lithium-ion battery solves this problem, allowing continuous use of the truck. Manufacturing industry: Production environments demand reliable performance and precise handling. The permanent magnet motor offers exceptional maneuverability, ensuring smooth, precise operations. Distribution: In distribution centers, gradeability and robustness are crucial. The FE4P35GY-80, with its performance comparable to that of internal combustion forklifts, guarantees optimum efficiency even in the most demanding conditions.
