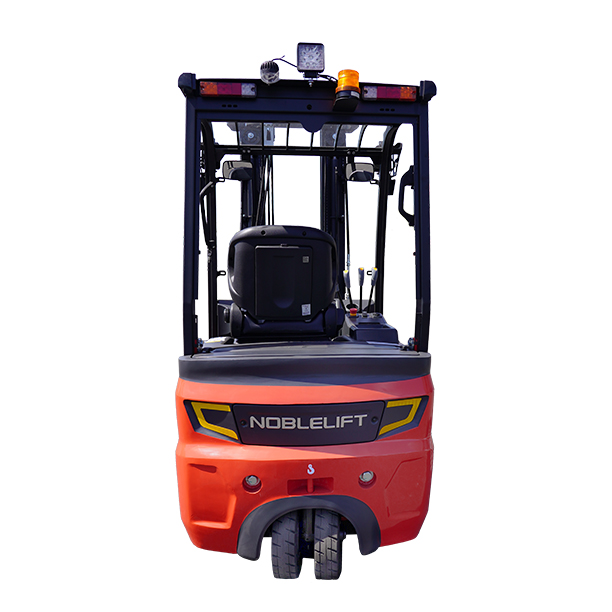

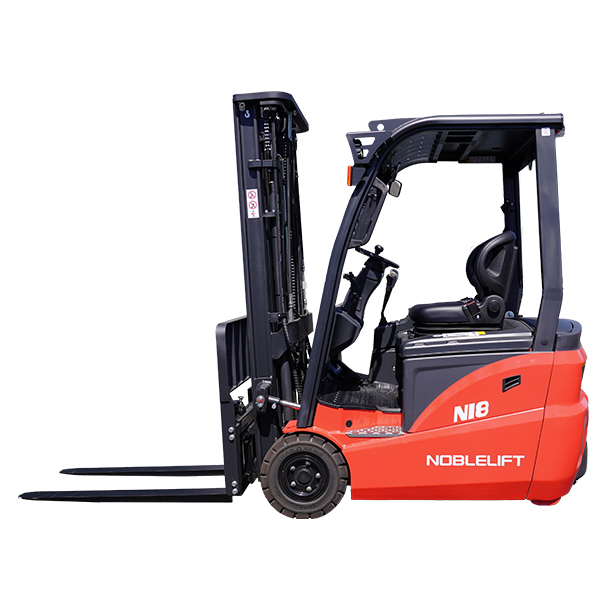

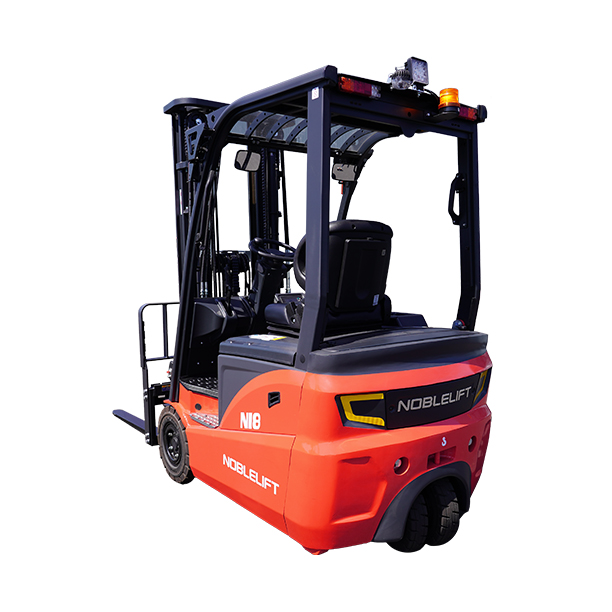

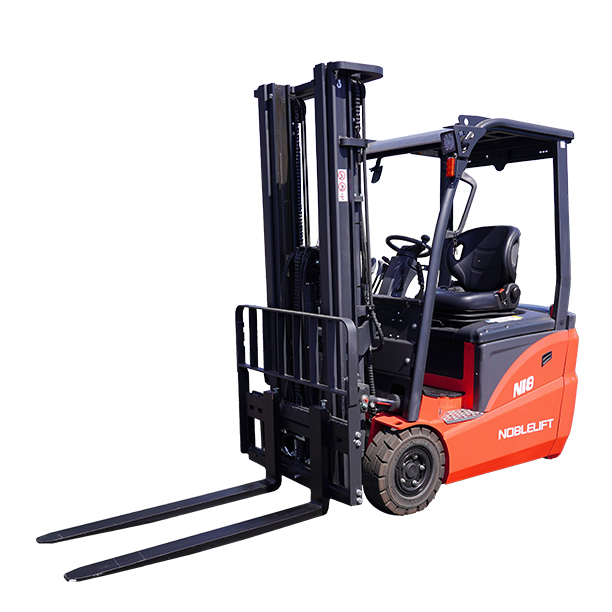

FE3D18N

Three-wheels double drive electric forklilt 1,8 T - load centre distance 500 mm

FE3D18N

Three-wheels double drive electric forklilt 1,8 T - load centre distance 500 mm

The FE3D18N 3-wheel, double drive electric forklift features an energy-saving function that improves its ability to operate for longer periods, without reducing productivity or performance. Reliable and safe, the FE3D18N forklift lifts and moves loads up to 1.8 tons. It is suitable for intensive indoor and limited outdoor use.

more information

	Designation	Stock / EXW price per unit excl. VAT
	FE3D18N Three-wheels double drive electric forklilt 1,8 T The configurations available for this model will appear below. If no configuration is available in stock, you can use the configurator and send us your request by email.

DESCRIPTION

TECHNICAL CHARACTERISTICS

Load capacity of the FE3D18N electric forklift: 1.8 tons
Drive: electric
Battery: lead-acid (lithium optional)
Wheels: 3 super-elastic solid tires
Weight (with battery): 3160 kg
Lifting height: 2500 mm to 6000 mm (depending on mast).
Use: heavy-duty indoors, limited outdoor use
The FE3D18N electric forklift is equipped with a double drive AC motor (48 V).
The forklift's energy-saving function enhances its ability to operate for longer periods, without reducing productivity or performance.
The forklift's design ensures high operating efficiency and ease of maintenance.
The choice of components, selected from internationally recognized brands, and the Curtis intelligent computer control system ensure reliability and safety for forklift users.
The forklift is ergonomically designed.
The double front-wheel drive, standard on Noblelift N-series electric forklifts, provides powerful travel and excellent steering performance, even in the most unfavorable ground conditions.
The truck's stability is further enhanced, thanks to a low-profile battery that keeps the truck's center of gravity lower to the ground.
The Curtis console controls all required forklift functions, in all situations.
It ensures high efficiency and the best performance from the AC motor.
The Curtis console's self-diagnostics and Intelligent Monitoring System (IMS) display indicators are thoroughly tested to guarantee the highest level of electric forklift reliability.
The forklift is equipped with lubricated disc brakes. Unlike conventional drum and shoe braking systems, which require periodic checks and maintenance. The electric forklift is equipped with an emergency stop button, located on the right-hand side near the control levers, and a retractable seatbelt.
The operator presence detection system ensures that the forklift can only be used when the operator is seated. Easy access for service and maintenance: Noblelift N-series electric forklifts feature a spring-assisted battery cover to facilitate battery checks and maintenance. The Curtis controller is housed in a compartment designed to prevent the ingress of dust, water and other contaminants. The Curtis controller is housed in a compartment designed to prevent the ingress of dust, water and other possible contaminants, yet the cover can be removed for quick and easy servicing and maintenance.
Noblelift N-series forklifts have been designed with optimum efficiency and productivity in mind, while ensuring ease of use and comfort for operators.
All lights are LED for improved visibility in dark areas.
The small-diameter steering wheel, with rotary knob and fully hydrostatic power steering (FHPS) on demand, ensures effortless driving during handling operations.
The comfort package includes a rear grab bar with horn, left and right mirrors, USB connector, deluxe grab bar and deluxe full-suspension seat to make work easier.
With regard to battery extraction on N-series forklifts, the aim is to ensure continuity of operations over several shifts. This is achieved in two ways: either via a side-opening access door, or from above, as on most forklifts.
