FE3R16N

Three-wheels dear drive electric forklilt 1,6 T - load centre distance 500 mm

Three-wheels dear drive electric forklilt 1,6 T - load centre distance 500 mm
Three-wheels dear drive electric forklilt 1,6 T - load centre distance 500 mm -
Three-wheels dear drive electric forklilt 1,6 T - load centre distance 500 mm -
Contact us +33(0) 5 59 50 67 63
FE3R16N

Three-wheels dear drive electric forklilt 1,6 T - load centre distance 500 mm

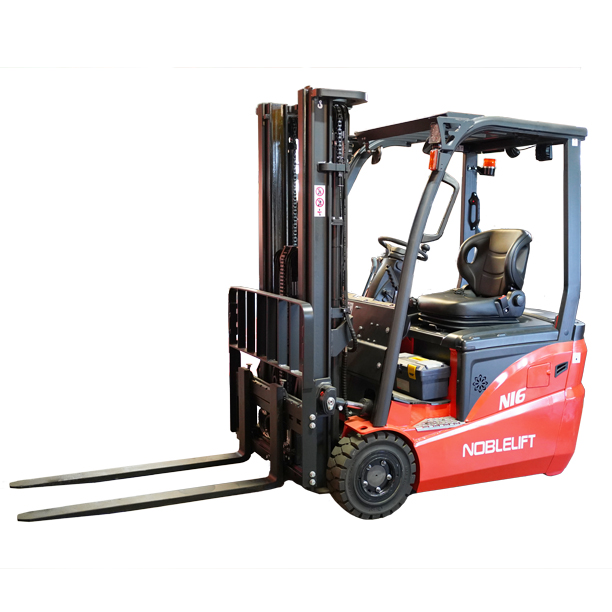

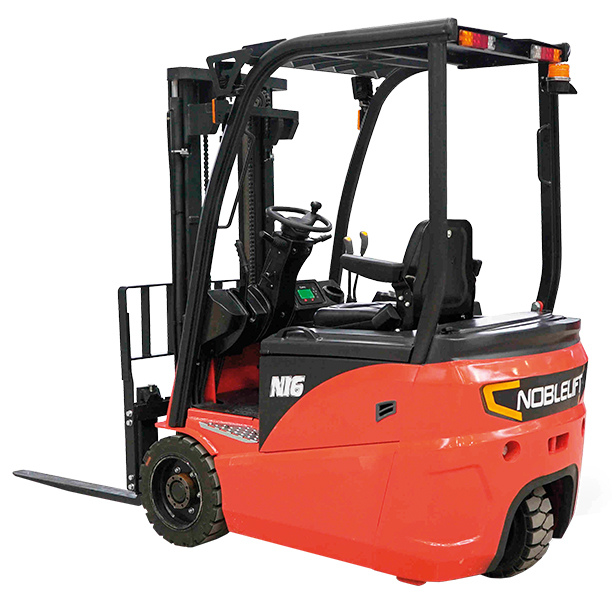

Safe and designed with components from recognized brands, the FE3R16N single-motor electric forklift is highly reliable. Compact and mobile, it is suitable for light to medium-duty handling, exclusively indoors. It moves and lifts loads of up to 1.6 tonnes.

more information
Designation Stock / EXW price per unit excl. VAT
FE3R16N
Three-wheels dear drive electric forklilt 1,6 T

The configurations available for this model will appear below. If no configuration is available in stock, you can use the configurator and send us your request by email.
DESCRIPTION

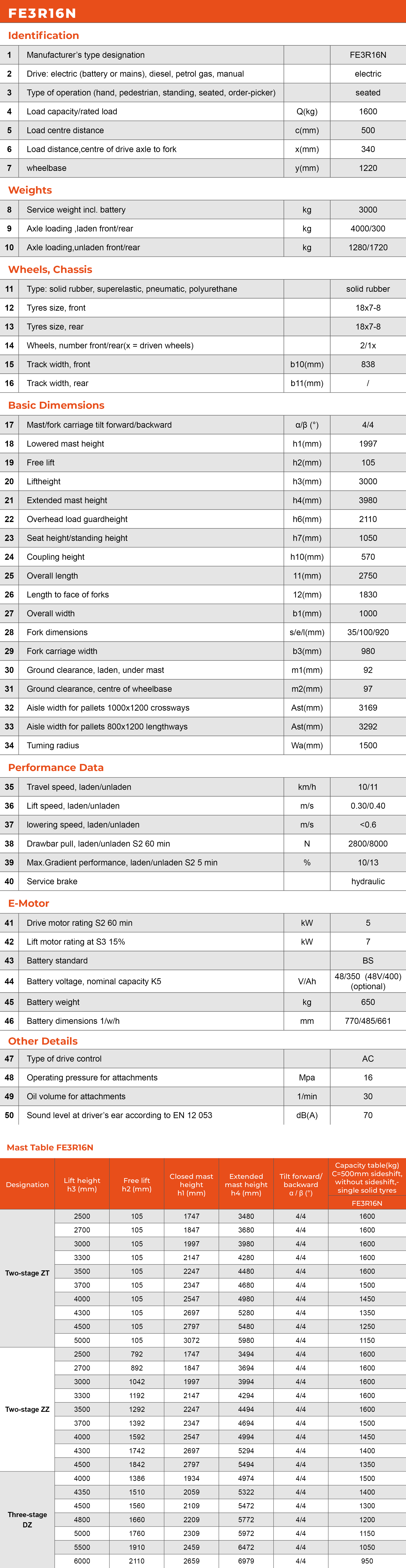

TECHNICAL CHARACTERISTICS

  • FER16N electric forklift load capacity: 1.6 ton
  • Drive: electric
  • Battery: lead-acid (lithium optional)
  • Wheels: 3 sturdy rubber tires
  • Weight (with battery): 3000 kg
  • Lifting height: 2500 mm to 6000 mm (depending on mast).
  • Use: light to medium-duty, indoors only
  • The FE3R16N single-motor electric forklift is renowned for its intelligent design, compactness and high mobility. Safe and built with quality components (recognized brands), this electric forklift is highly reliable.
  • Its features include an intelligent computer control system, a maintenance-free AC drive system and an on-board self-diagnostic display.
  • It is ergonomically designed for user comfort.
  • Lateral battery extraction for maintenance facilitates servicing and allows continuity of work between shifts. LED front lights, directional lights, combined rear lights and standard warning lights enable operators to work safely in dark environments, such as containers, or at night.
  • Forklift operators' work is made comfortable by the small-diameter steering wheel (with turning knob). The ZAPI or Curtis console facilitates operation and maintenance. Equipped with rear wheel position sensor and display, with speed reduction when cornering.
  • The mast tilt function is achieved by movement of the front axle.
  • The design is extremely compact, with reduced width and turning radius for easy use in tight spaces.

Options

  • As an option, different battery capacities are available depending on the application: 24V/280Ah (Standard), 24V/480Ah, 24V/540Ah.
  • The battery self-filling system is also available as an option for easy battery maintenance.
  • This electric forklift can be fitted with a lithium battery.
