Home > Products > Aerial work platforms > Scissor lift aerial work plateforms > Scissor lift 10 m electric aerial work plateform
SC10E

Scissor lift 10 m electric aerial work plateform

Scissor lift 10 m electric aerial work plateform
Scissor lift 10 m electric aerial work plateform -
Contact us +33(0) 5 59 50 67 63
SC10E

Scissor lift 10 m electric aerial work plateform

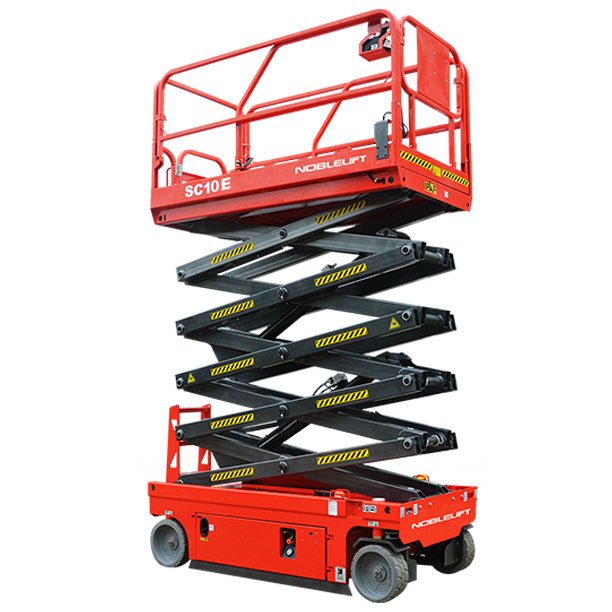

The SC10E scissor lift is designed for all types of work up to a height of 10 meters. Compact, with electric drive and hydraulic lift, this scissor lift is ideal for use in industry, energy, logistics warehousing, maintenance and cleaning.

more information
Designation Stock / EXW price per unit excl. VAT
SC10E - Scissor lift 10 m electric aerial work plateform SC10E
Scissor lift 10 m electric aerial work plateform

DESCRIPTION
TECHNICAL CHARACTERISTICS

  • NOBLELIFT SC series scissor lifts are designed for all types of work and operations at height.
  • Particularly used in the industrial, energy, logistics warehouse, maintenance and cleaning sectors, the SC10E scissor lift can work at heights of up to 10 meters. Narrow, with hydrostatic drive and hydraulic lift, the SC10E scissor lift features a platform with the following dimensions: 2270 mm x 1120 mm, with a platform length extension of 900 mm.
  • Operators maneuver, steer and deploy the scissor lifts directly from the platform's operator station. This ensures continuous operation, even when only one person is assigned to the operation, and without the need for control from the ground.
  • The chassis is equipped with a drawer-type electrical box for easy access to parts and ease of maintenance.
  • The platform and chassis are equipped with an automatic fault code display system for easy maintenance.
  • Portable control boxes allow users to operate easily away from the platform, enabling instant on-the-spot troubleshooting in the event of a malfunction. The chassis is equipped with an integrated control panel for ease of operation
  • The chassis of this scissor lift is designed with a drawer-type electrical box, providing easy access to parts and facilitating maintenance.
  • The lift's tires are durable and non-marking.
  • Practical, standard-sized sheaths make it easy to load and lift the lift using a forklift truck. Similarly, attachment points enable the platform to be moved by crane
  • The manual overload valve enables the SC series to be moved in the event of a power failure.
  • An hour meter automatically records operating time.  The user can perform periodic maintenance at the appropriate intervals.
  • Error code display: facilitates troubleshooting and maintenance.
  • The platform features an emergency lowering system. In the event of a power failure, this system brings the operator safely back to the ground.
  • A safety bar supports the operator and ensures his safety.
  • The basket door is self-locking.
  • Equipped with a main switch: when the SC series basket is in storage, pressing this button cuts the power supply, preventing the battery from discharging. When the battery is fully charged, the power supply to the basket is automatically cut off to protect the battery and charger.
  • Warning light: a heat lamp operates during use.
  • The lift and lower controls are both equipped with an emergency stop button. In the event of an emergency, all actions are interrupted after pressing the button, ensuring operator safety.
  • Pothole protection system: When the vehicle is in the lifting position, the pothole protection panel engages automatically. The automatic braking system eliminates the risk of slipping when working on slopes.
  • When the aerial platform exceeds the maximum operating angle, the tilt protection system automatically triggers an alarm and deactivates ALL actions except tilt protection. Manual overload valve: The manual overload valve enables the SC series to be moved in the event of a power failure.
  • Proportional control handle controls lifting and travel speed. Full-height travel: You can move and turn at any working height, which is convenient and improves work efficiency. When the height of the platform approaches a certain value, the travel speed automatically slows down to ensure safe operation.

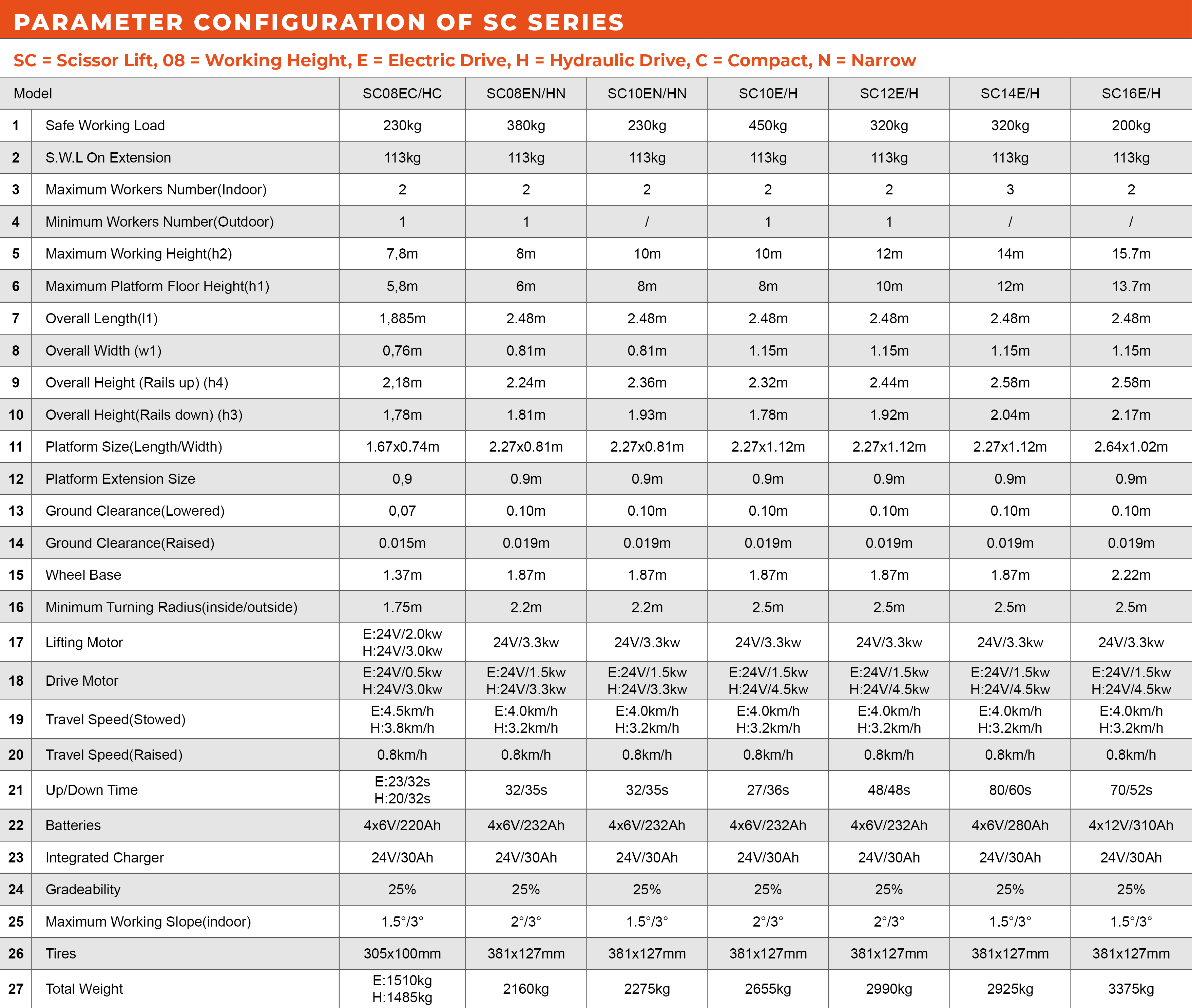

  • The platform barriers can be folded down, enabling the platform to be stored in a confined space, or to pass under limited heights. Front-wheel drive and steering: minimum turning radius, suitable for tight spaces Portable control box allows the operator to work easily away from the work platform For technical information and dimensions, please consult the technical specifications or download the brochure or data sheet.

Documentation
