SC14EA-T4

Electric scissor lift with slope compensation system 14 m

Electric scissor lift with slope compensation system 14 m
Electric scissor lift with slope compensation system 14 m -
Contact us +33(0) 5 59 50 67 63
SC14EA-T4

Electric scissor lift with slope compensation system 14 m

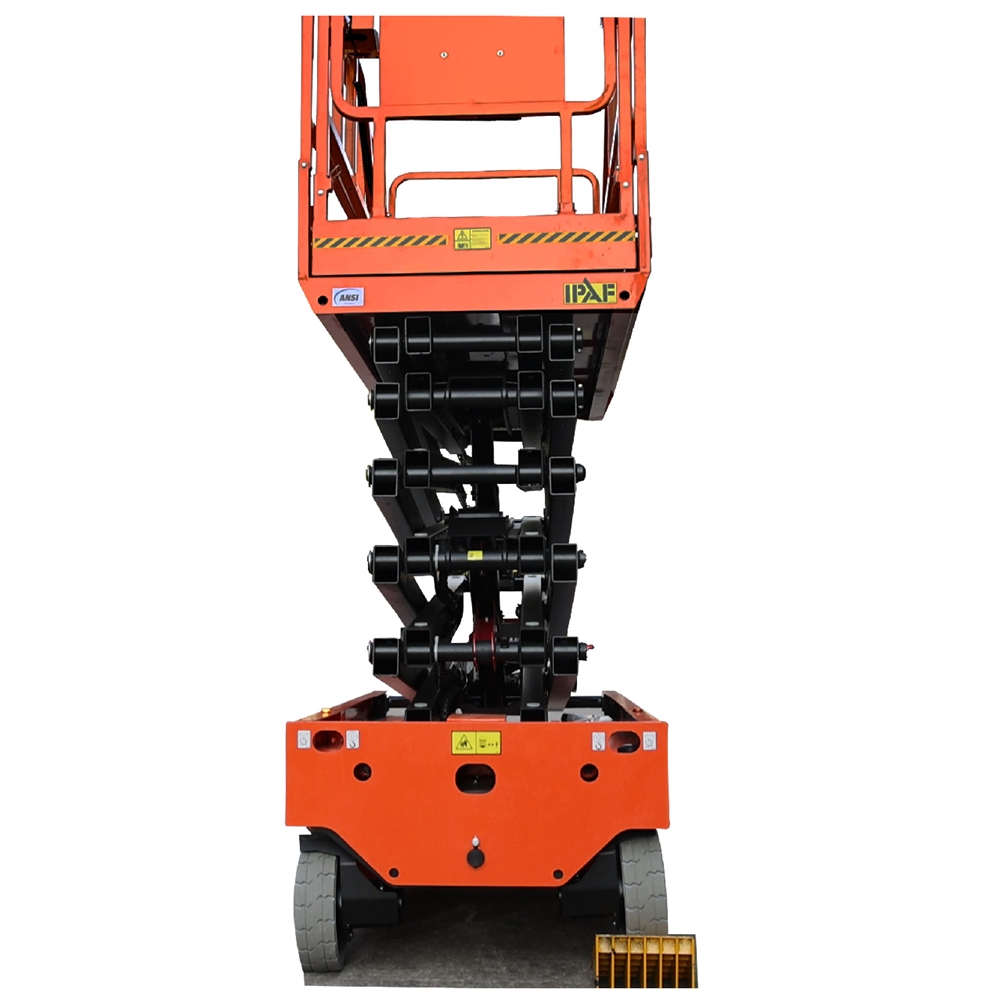

The SC14EA-T4 is an electric scissor lift with slope compensation. It enables operators to maneuver and perform their tasks at heights of up to 14 meters, on sloping ground, without risk of tipping or falling, as the extendable platform compensates for/maintains its horizontal level.

more information
Designation Stock / EXW price per unit excl. VAT
SC14EA-T4 - Electric scissor lift with slope compensation system 14 m SC14EA-T4
Electric scissor lift with slope compensation system 14 m

Weight : 2890 kg
DESCRIPTION
TECHNICAL CHARACTERISTICS

  • The SC14EA-T4 electric scissor lift is equipped with a slope compensation system. The chassis is automatically levelled, guaranteeing the safety and reliability of the equipment.
  • This aerial work platform is designed for operations up to a height of 14 meters. Although designed for a maximum of 3 operators, the SC14EA-T4 scissor lift can be maneuvered by just one person at a time, for continuous high-altitude work, even on uneven outdoor or indoor terrain. Non-marking tires are softer and more durable. They don't scratch the ground. This scissor lift is highly efficient, thanks to 2-wheel drive at high speed, strong 4-wheel drive at low speed, and free shifting. This scissor lift has a tight turning radius. The SC14EA-T4 can therefore be used flexibly on congested construction sites, in elevators and in narrow areas.
  • The platform and chassis of the SC14EA-T4 scissor lift are equipped with a control system and an emergency stop button respectively.
  • The chassis is also equipped with an emergency lowering system to guarantee operator safety. Technical specifications of the SC08EA-TL electric scissor lift: Safe working load: 350 kg Safe working load on extension: 113 kg Maximum number of workers: 3 Maximum working height: 14 m Minimum platform height: 1.53 m Maximum platform height: 11.6 m Overall length: 2.5 m Overall width: 1.15 m Overall height (rails up): 2.65 m Overall height (rails down): 1.99 m Platform size length/width: 2.27x1.12 m Platform extension size: 0.9 m Lift motor: 24V / 4.5 kw 4.5 cc Drive motor: 24V / 4x1.0 kw Travel speed (row): 4.5 km/h Rise / fall time: 62 / 42 sec Maintenance-free battery: 4x12 V / 120 Ah Integrated charger: 24 V /30 A Maximum gradient: 0.25 Maximum working gradient: 1.5˚/3˚ Tires: Ф 406 x 125 mm Total weight: 2890 kg Here are the standard configuration elements of the SC14EA-T4 aerial work platform: Proportional controls Self-locking door on platform Unidirectional extended platform Full travel Non-marking tire Hydraulic motor drive Automatic braking system Emergency lowering system Emergency stop button Tube explosion system Fault diagnosis system Tipping protection system All motion alarms Horn Work schedule Safety brackets Forklift pockets Loader protection Flashing beacon Folding guardrails Automatic pothole protection Here are the optional configuration elements for the SC14EA-T4 platform: Overload sensor Platform AC power supply Platform operating indicator

Documentation
