SC08EA-TL

Electric scissor lift on tracks 8 m

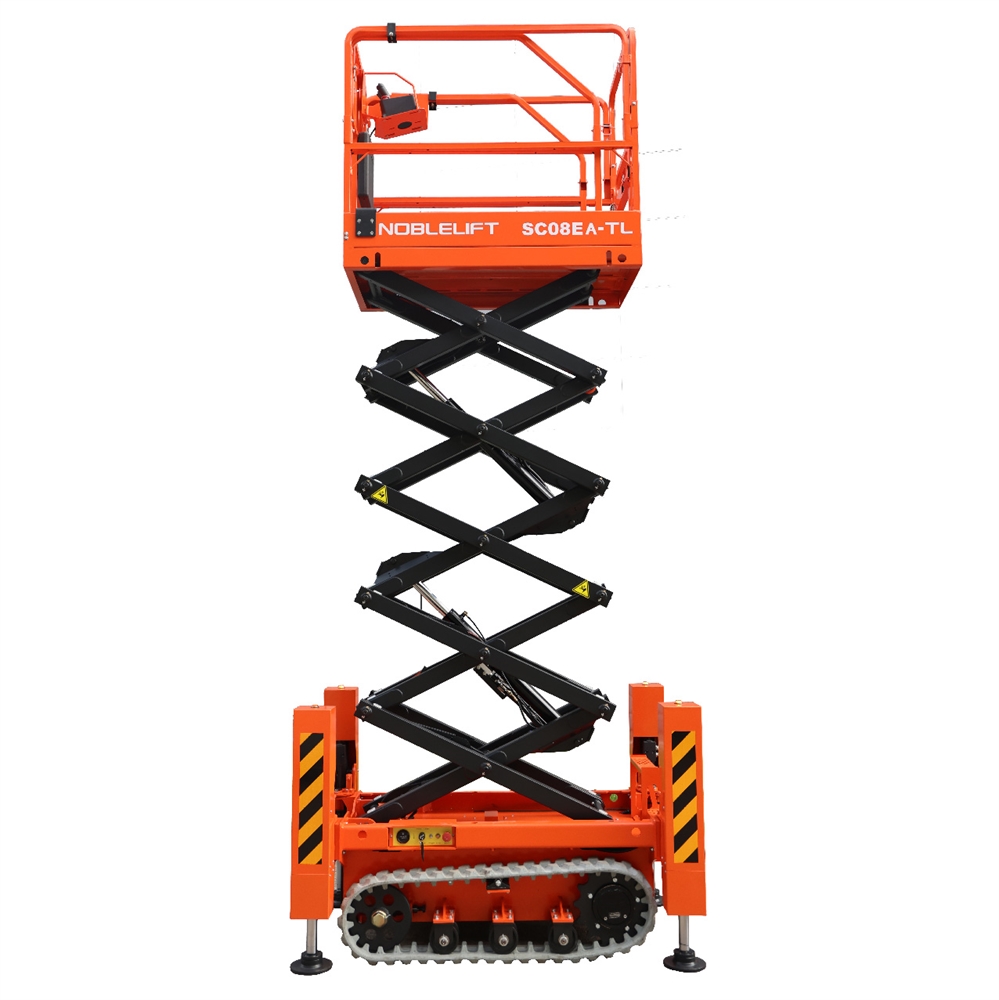

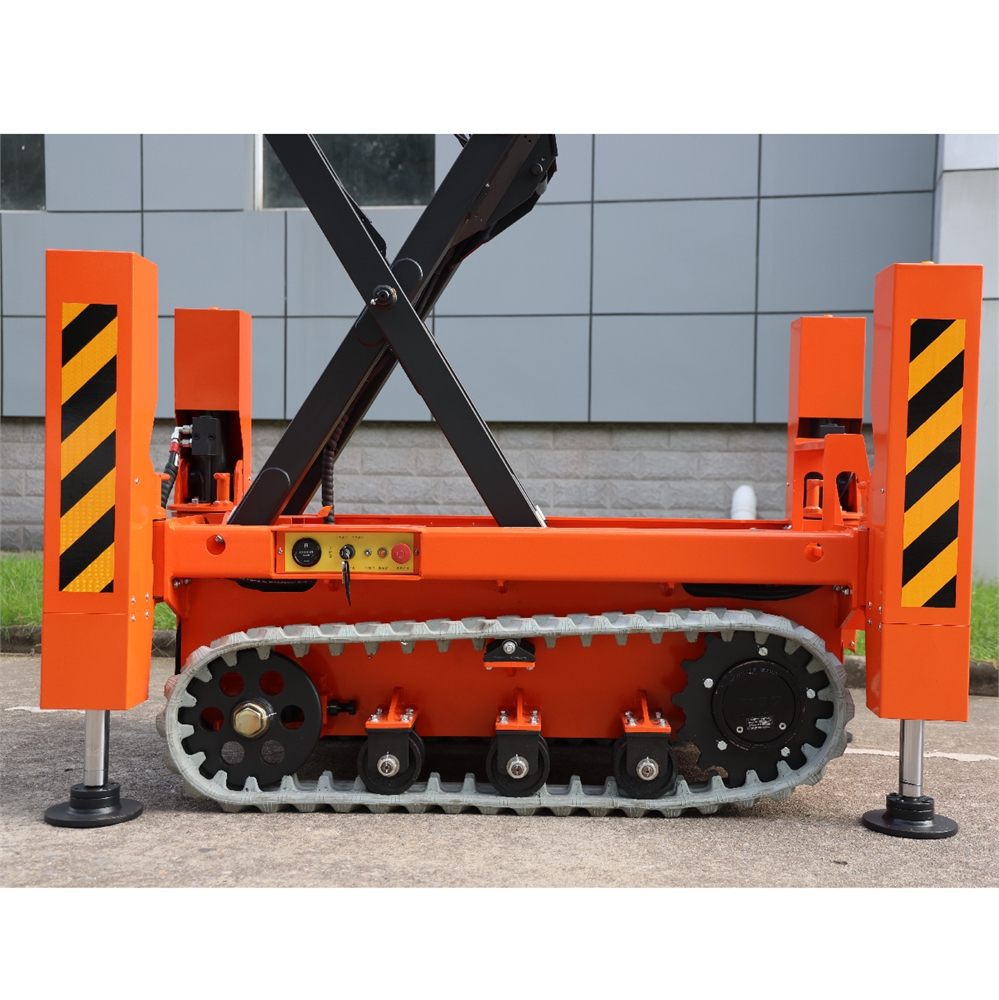

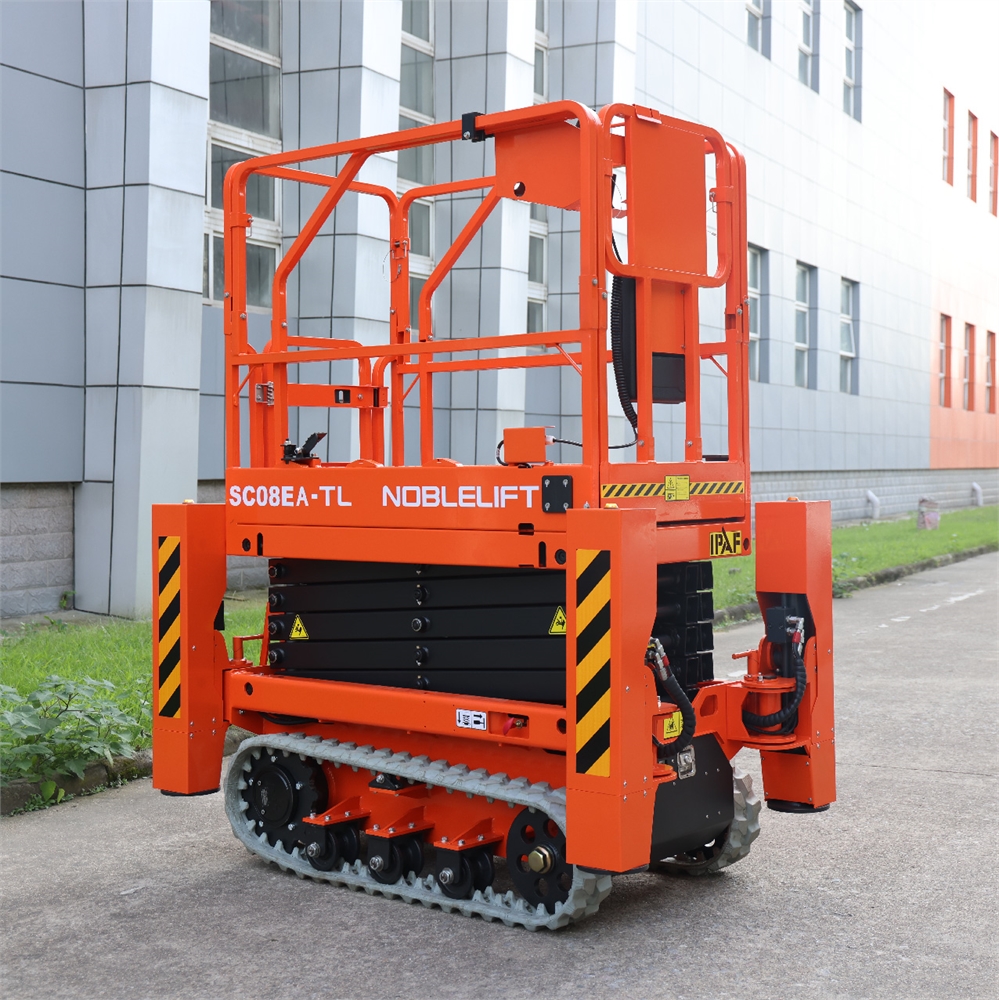

The SC08EA-TL scissor lift is track-mounted. This electrically-powered platform is designed to enable a single operator to work continuously at high altitudes: 8 meters. Thanks to its caterpillar tracks, it can work on uneven terrain and outdoors, such as on construction sites.

more information
Designation Stock / EXW price per unit excl. VAT
SC08EA-TL - Electric scissor lift on tracks 8 m SC08EA-TL
Electric scissor lift on tracks 8 m

Weight : 1260 kg
DESCRIPTION
TECHNICAL CHARACTERISTICS

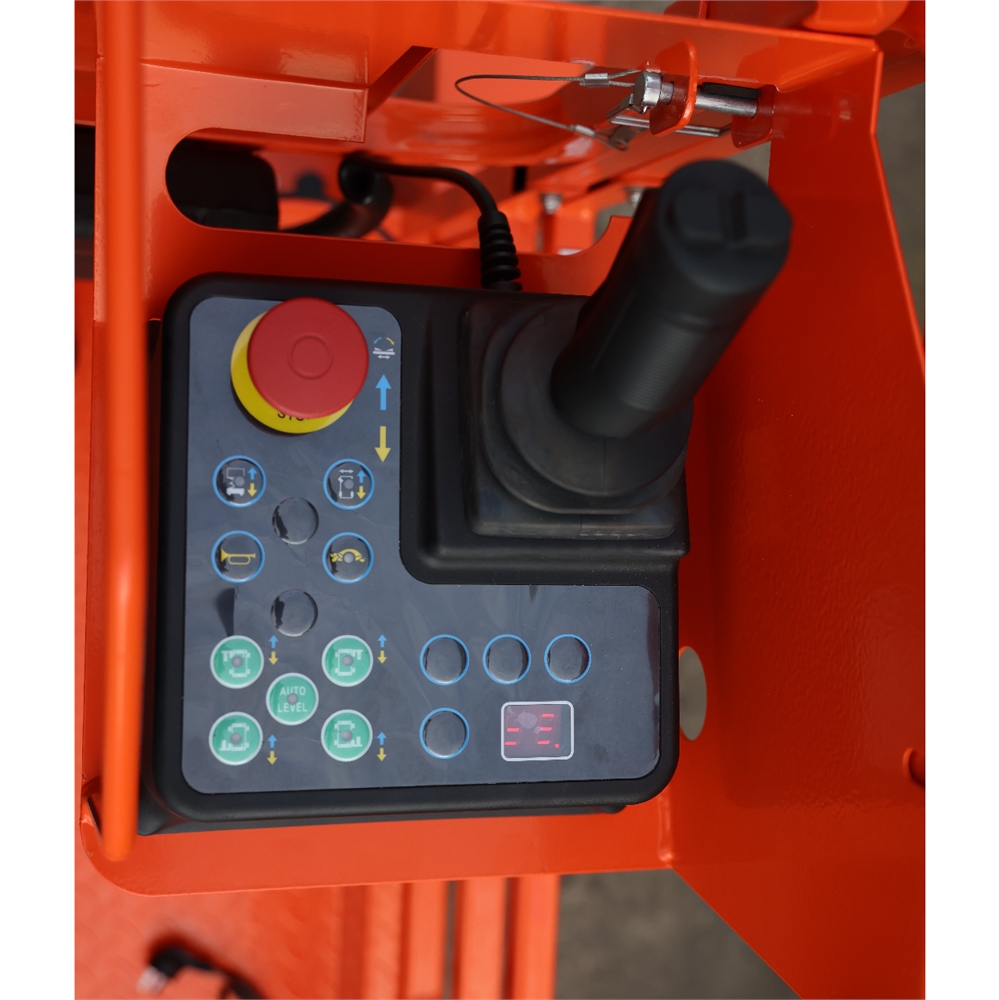

  • The SC08EA-TL tracked scissor lift enables users to carry out maintenance operations directly from the platform: electric travel and elevation are activated from controls on the extendable platform.
  • This electric scissor lift is designed for up to 2 operators, but can be maneuvered by one person at a time, for continuous high-altitude work, even on uneven terrain and outdoors. The scissor lift's folding guardrails are easy and convenient to fold. Their design facilitates access to the electric scissor lift through the doorway, even in areas where space is at a premium.
  • This scissor lift model features a tight turning radius. The SC08EA-TL can therefore be used flexibly on congested construction sites, in elevators and in narrow areas.

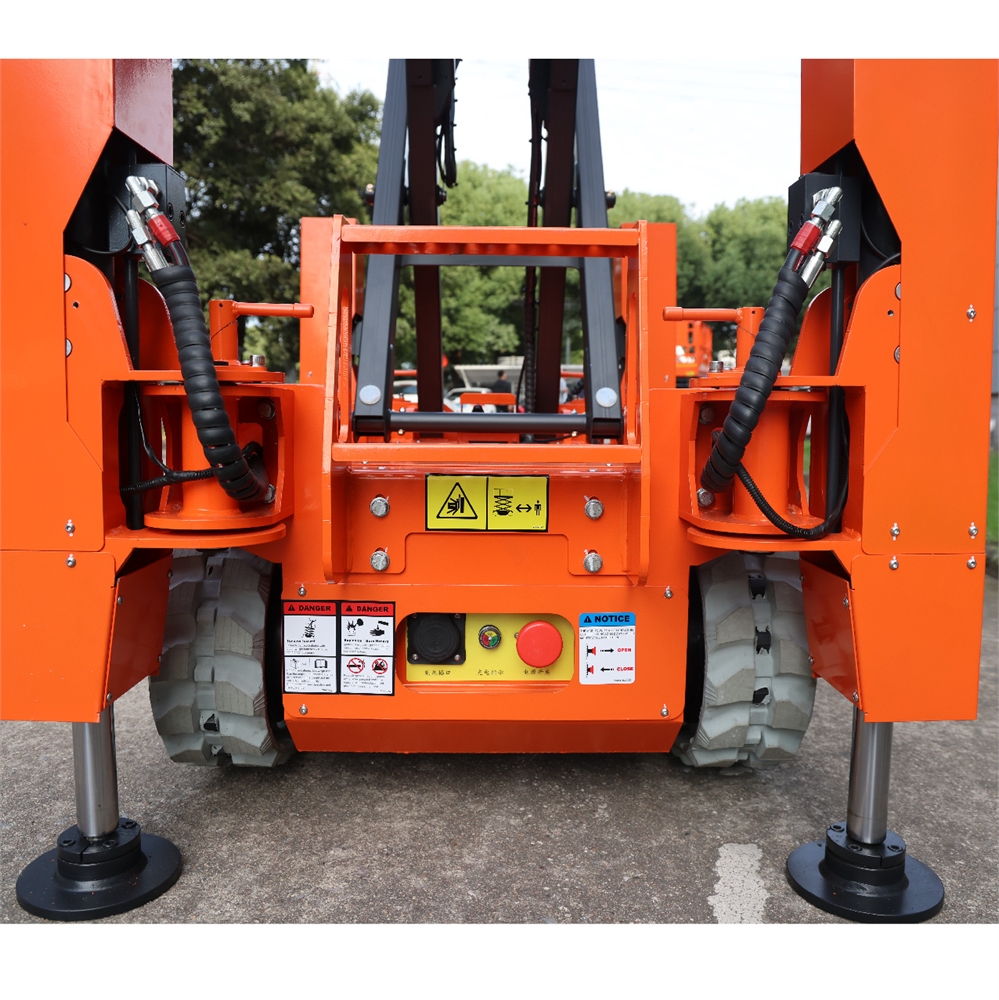

  • The SC08EA-TL's platform and chassis are equipped with a control system and an emergency stop button respectively.
  • The chassis is also equipped with an emergency lowering system to guarantee operator safety.
  • A second control box on the chassis enables users to operate easily off the platform. A second control box on the chassis enables users to operate easily away from the platform, and to accurately diagnose and immediately resolve platform malfunctions on site.
  • The tilt limiting system and the audible alarm function of the tilt angle sensor prevent any risk of overturning. Technical specifications of the SC08EA-TL electric scissor lift: Safe working load: 230 kg Safe working load on extension: 100 kg Maximum number of workers: 2 Maximum working height: 8 m Minimum platform height: 1.03 m Maximum platform height: 6 m Overall length: 2.01 m Overall width: 0.88 m Overall height (rails up): 2.13 m Overall height (rails down): 1.74 m Platform size length/width: 1.04x0.76 m Platform extension size: 0.6 m Lift motor: 24 V / 2.2 kw 2.6 cc Drive motor: 24 V / 2x1.0 kw Travel speed (row): 2.5 km/h Up/down time: 36/37 sec Maintenance-free battery: 2x12 V / 120 Ah Integrated charger: 24 V / 20 A Maximum gradient: 0.3 Maximum working gradient: 1.5˚ / 2.5˚ Tires: 105 /72 / 42 mm Total weight: 1260 kg Here are the standard configuration elements of the SC08EA-TL aerial work platform: Proportional controls Self-locking door on platform Unidirectional extended platform Full travel Non-marking tire Hydraulic motor drive Automatic braking system Emergency lowering system Emergency stop button Tube explosion system Fault diagnosis system Tipping protection system All motion alarms Horn Work schedule Safety brackets Forklift pockets Loader protection Flashing beacon Folding guardrails Automatic pothole protection Here are the optional configuration elements for the SC08EA-TL platform: Overload sensor Platform AC power supply Platform operating indicator
